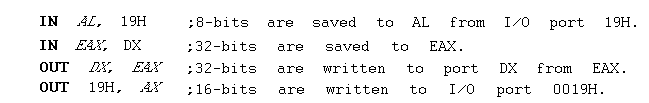

We discussed IN, OUT, INS and OUTS as instructions for the transfer of data to and from an I/O device.
-
IN and OUT transfer data between an I/O device and the microprocessor's accumulator (AL, AX or EAX).
-
The I/O address is stored in:
-
Register DX as a 16-bit I/O address (variable addressing).
-
The byte, p8, immediately following the opcode (fixed address).
-
Only 16-bits (A0 to A15) are decoded.
-
Address connections above A15 are undefined for I/O instructions.
-
0000H-03XXH are used for the ISA bus.
-
INS and OUTS transfer to I/O devices using ES:DI and DS:SI, respectively.
-
Isolated and Memory-Mapped I/O:
-
In the Isolated scheme, IN, OUT, INS and OUTS are required.
-
In the Memory-mapped scheme, any instruction that references memory can be used.
-
8-bit port addresses used to access system board device, e.g. timer and keyboard.
-
16-bit port addresses used to access serial and parallel ports, harddrives, etc.
-
The basic input device (to the microprocessor) is a set of tri-state buffers.
-
The basic output device (from the microprocessor) is a set of latches.
-
In this case, the data from the OUT instruction is latched using SEL.
-
I/O devices are typically slower than the microprocessor.
-
Handshaking is used to synchronize I/O with the microprocessor.
-
A device indicates that it is ready for a command or data (through some I/O pin or port).
-
The processor issues a command to the device, and the device indicates it is busy (not ready).
-
The I/O device finishes its task and indicates a ready condition, and the cycle continues.
-
There are two basic mechanisms for the processor to service a device.
-
Polling: Processor initiated. Device indicates it is ready by setting some status bit and the processor periodically checks it.
-
Interrupts: Device initiated. The act of setting a status bit causes an interrupt, and the processor calls an ISR to service the device.
-
A printer connected to the parallel port requires handshaking.
-
The parallel port specification is shown below:
-
The processor writes ASCII data out to the Datax pins of the printer and toggles the Data Strobe pin to latch it in.
-
The printer raises the Busy pin.
-
When the Busy pin goes low, the sequence repeats.
-
The terminal characteristics of the processor must be matched to those of the I/O devices.
-
Input Devices:
-
TTL (0.0V-0.8V low and 2.0-5.0V high) or compatible.
-
Switch-based; usually either open or connected.
-
These must be conditioned before they can be used properly.
-

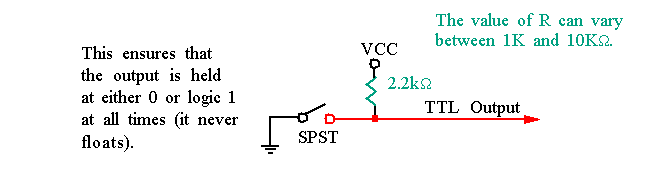

For example, to make a simple (single-pole, single-throw) toggle switch TTL compatible:
-
Input Devices:
-
Mechanical switches physically bounce when they are closed (causing them to momentarily open after being closed).
-
This can cause a problem if they are used as a clocking signal.
-
Two asynchronous flip-flop solutions are given below:
-
The basic idea is that these flip-flops store the values even if the D/D nodes both float.
-
Output Devices:
-

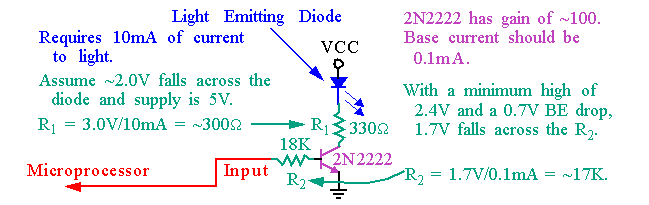

Interfacing an output device requires matching the voltage and current relationships of the devices and processor.
-
Remember that the standard output levels of TTL compatible devices are 0.0 to 0.4V for logic 0 and 2.4V to 5.0V for logic 1.
-
The current levels are 0.0 to 2.0mA (logic 0) and 0.0 to -400uA (logic 1).
-
For memory-mapped I/O, decoding is identical to memory decoding.
-
For isolated I/O, IORC and IOWC are developed using M/IO and W/R pins of the microprocessor.
-
The text gives examples of 8-bit decoding and 16-bit decoding, which is a straightforward application of devices we've used for memory decoding.
-
The I/O banks on the 8086 through the 80386SX are also set up like the memory.
-
Similar to memory writes, any 8-bit I/O write request requires separate write strobes (BHE and BLE) but read requests do not.
-
Output devices can be 16-bit in which case BHE is not needed.
-
Input devices can be 8-bit or 16-bit.
-
Note that instead of latches, high impedance buffers (74ALS244) are used in these cases.
-
32-bit ports are becoming more popular because of PCI bus primarily.
-
The EISA and VESA local bus are also 32-bit buses.
-
For the 64-bit data buses of the Pentium, the I/O ports can appear in any of the 8 banks.
-
However, only 32-bit transfers are supported, as there are no 64-bit transfer instructions.
