Scull's Memory Usage

We need to examine how and why scull performs memory allocation before looking at the read and write methods.

The Scull_Dev structure is defined first:

typedef struct Scull_Dev

{

void **data;

struct Scull_Dev *next; /* Pointer to next device struct. */

int quantum; /* Quantum size */

int qset; /* Array size */

unsigned long size;

unsigned int access_key; /* Use by sculluid and scullpriv. */

unsigned int usage; /* Lock on device during use. */

} Scull_Dev;

A linked list of these structures is created for each device as its memory requirements grow.
The fields next , data , quantum , qset and size are used to track the memory allocation.

Scull's Memory Usage

scull_trim is in charge of the deallocating this data structure.

int scull_trim(Scull_Dev *dev)

{

Scull_Dev *next, *dptr;

int qset = dev->qset;

int i;

if (dev->usage)

return -EBUSY; /* scull_open ignores this error. */

for (dptr = dev; dptr; dptr = next)

{

if (dptr->data)

{

for (i = 0; i < qset; i++)

if (dptr->data[i])

kfree(dptr->data[i]);

kfree(dptr->data);

dptr->data = NULL;

}

Scull's Memory Usage

next = dptr->next; /* Goto next quantum set. */

if (dptr != dev)

kfree(dptr);

}

dev->size = 0;

dev->quantum = scull_quantum;

dev->qset = scull_qset;

dev->next = NULL;

return 0;

}

This routine is called in scull_open when the file is opened for writing.

Read and Write Methods:

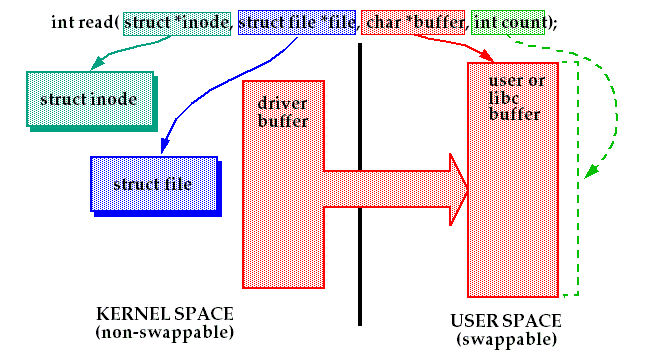

Read and write methods transfer data between the user address space and the kernel address space.

You cannot use the libc routines, e.g., memcpy , because the data buffer pointers operate in user (virtual) address space, and not in kernel space.

Read and Write Methods

Cross copies of data between user and kernel space is performed by functions in <asm/uaccess.h> (for kernels >2.0) and in <asm/segment.h> otherwise.

Two of the older functions are called memcpy_fromfs and memcpy_tofs while the newer functions are:

unsigned long copy_from_user(unsigned long to,

unsigned long from, unsigned long len);

unsigned long copy_to_user(unsigned long to,

unsigned long from, unsigned long len);

Once again, the code that uses these functions must be reentrant since a page fault will put the calling process to sleep.

Calls to the read and write methods request a transfer of a specific number of bytes.

However, the driver is free to transfer less data, as we will see.

The Read Method

The return value from read is interpreted by the calling program as follows:
When return value == count , the transfer succeeded.
If return value > 0 && return value < count , only a partial transfer occurred.

The caller is free to retry (which occurs in the fread library function).

If return value == 0 , end-of-file is reached.
If return value < 0 , an error occurred.

The caller can use this value to look up the error in <linux/errno.h>

The only condition not tested for is " there is no data, but it may arrive later ".

In this case, the read system call should block.
This will be covered later.

The read method of scull returns a maximum of size quantum .

If more data is requested, the caller must iterate the call.

If the current read position is greater than the device size, read return 0.

This occurs if process A reads and process B opens for writing.

The Read Method

ssize_t scull_read (struct file *filp, char *buf,

size_t count)

{

Scull_Dev *dev = filp->private_data;

Scull_Dev *dptr;

int quantum = dev->quantum;

int qset = dev->qset;

int quantum_set_size = quantum * qset;

unsigned long f_pos = (unsigned long)(filp->f_pos);

int qset_index, qset_offset;

int quantum_index, quantum_offset;

/* Write open truncated data. */

if (f_pos > dev->size)

return 0;

/* If current position plus request # bytes is greater than the # bytes

available, reset count. */

if (f_pos + count > dev->size)

count = dev->size - f_pos;

The Read Method

/* Compute the quantum to read the data from. */

qset_index = f_pos/quantum_set_size;

qset_offset = f_pos%quantum_set_size;

quantum_index = qset_offset/quantum;

quantum_offset = qset_offset%quantum;

/* Simply follow the pointers in the list qset_index times. */

dptr = scull_follow(dev, qset_index);

/* Check for end-of-file in the above call, NULL quantum_set. */

if (!dptr->data)

return 0;

/* Check for end-of-file, NULL quantum. */

if (!dptr->data[quantum_index])

return 0;

The Read Method

/* If the amount of data requested is greater than what is available in the

rest of the quantum, read only up to the end of the quantum. */

if (count > quantum - quantum_offset)

count = quantum - quantum_offset;

/* The following call may sleep. */

dev->usage++;

copy_to_user(buf,

dptr->data[quantum_index]+quantum_offset,

count);

dev->usage--;

/* Update the pointer to the read position. Note that this satisfies

re-entrancy requirements. */

filp->f_pos += count;

return count;

}

The Write Method

The following semantics are implemented for the write method:
If return value == count , the transfer succeeded.
If return value > 0 && return value < count , only a partial transfer occurred.

The caller is free to retry, which is what cp will do for you.

If return value == 0 , nothing was written.

This is not an error and the standard library should retry the write.
This is significant for blocking write, covered later.

If return value < 0, an error occurred.

The caller can use this value to look up the error in <linux/errno.h>

As with scull_read , scull_write deals only with a quantum at a time.

Also note that like scull_read , I've left out the forth argument passed by the kernel to the scull_write method.

The Write Method

ssize_t scull_write (struct file *filp,

const char *buf, size_t count)

{

Scull_Dev *dev = filp->private_data;

Scull_Dev *dptr;

int quantum = dev->quantum;

int qset = dev->qset;

int quantum_set_size = quantum * qset;

unsigned long f_pos = (unsigned long)(filp->f_pos);

int qset_index, qset_offset;

int quantum_index, quantum_offset;

/* Compute the quantum to write the data to. */

qset_index = f_pos/quantum_set_size;

qset_offset = f_pos%quantum_set_size;

quantum_index = qset_offset/quantum;

quantum_offset = qset_offset%quantum;

The Write Method

/* Simply follow the pointers in the list qset_index times. */

dptr = scull_follow(dev, qset_index);

/* If the quantum set is NOT found, then allocate a quantum set and

initialize the space to 0. */

if (!dptr->data)

{

dptr->data =

kmalloc(qset * sizeof(char *), GFP_KERNEL);

if (!dptr->data)

return -ENOMEM;

memset(dptr->data, 0, qset * sizeof(char *));

}

/* If the quantum is NOT present, then allocate a quantum. */

if (!dptr->data[quantum_index])

{

dptr->data[quantum_index] =

kmalloc(quantum, GFP_KERNEL);

The Write Method

if (!dptr->data[quantum_index])

return -ENOMEM;

}

/* Check that the write request is less than the quantum size. */

if (count > quantum - quantum_offset)

count = quantum - quantum_offset;

/* Once again, the write may sleep. */

dev->usage++;

copy_from_user(

dptr->data[quantum_index]+quantum_offset,buf,

count);

dev->usage--;

/* Update the memory size of the device. */

if (dev->size < f_pos + count)

dev->size = f_pos + count;

The Write Method

/* Update the pointer to the write position. */

filp->f_pos += count;

return count;

}

You can now compile and test the driver with these four methods.

The device acts like a data buffer whose length is limited only by the available RAM on the system.

Try using cp , dd and input/output redirection to test out the driver, e.g.,

ls -l > /dev/scull0

You can also add printk statements in the appropriate places in the driver code to watch variables.

Or you can use the strace utility to monitor system calls issued by a program.
