Structural hazards:
-
As mentioned above, structural hazards are those that occur because of
resource
conflicts.
-
Most common type: When a functional unit is
not fully pipelined
.
-
The use of the functional unit requires more than one clock cycle.
-
If an instruction follows an instruction that is using it, and the second instruction also requires the resource, it must stall.
-
A second type involves resources that are
shared
between pipe stages.
-
Occurs when two different instructions want to use the resource in the same clock cycle.
-
In this case, the
lack of duplication
of the resource does not allow all combinations of instructions in the pipeline to execute.
-
These stalls increase the CPI from the ideal pipelined value of 1.
-
Example 1:
-
For cost-saving reasons, a CPU may be designed with a single interface to memory.
-
This interface is always used during IF.
-
It is also used during MEM for Load or Store operations.
-
When a Load or Store gets to the MEM stage, the instruction in the IF stage must be stalled.
-
Example 2: Consider branches with complex conditions:
-
Let's modify DLX pipeline to allow branches that:
-
First perform a comparison (during the EX cycle)
-
And then the address calculation if the branch was taken (during the MEM cycle).
-
In such a case, the MEM cycle of a branch would interfere with the EX cycle of the following instruction, causing a stall.
-
In both cases, the problem could be solved with additional CPU hardware.
-
In the first case, a second memory port.
-
In the second case, an additional ALU.
-
-
Therefore, structural hazards are caused solely by insufficient hardware.
-
Machine with
OUT
structural hazards will always have a lower CPI.
-
If this is the case, then why allow them ?
-
To reduce cost
.
-
i.e. adding split caches, requires twice the memory bandwidth.
-
Also, a fully pipelined floating point multiplier costs lots of gates.
-
It is not worth the cost if the hazard does not occur very often.
-
To reduce latency of the unit.
-
Making functional units pipelined adds delay (pipeline overhead -> registers.)
-
An unpipelined version may require fewer clocks per operation.
-
Reducing latency has other performance benefits, as we will see.
-
Pipelining changes the relative timing of instructions by overlapping them in time.
-
This introduces possible hazards by reordering accesses
-
To the register file (data hazards.)
-
To the program counter (control hazards.)
-
All of the instructions
after
ADD use the result of the ADD instruction.
-
Since the standard DLX pipeline waits until WB to write the value back, the SUB, AND and OR instructions
read
the wrong value.
-
Also, the error may
not be deterministic
if an interrupt occurs between the ADD and the AND, which would allow the ADD to write its result.
-
Memory reference data hazards
:
-
We used registers in our example.
-
It is also possible for a pair of instructions to create a dependence by writing and reading the same memory location.
-
In DLX, however, we always keep the memory references in order, preventing this type of hazard.
-
Consider cache misses.
-
These could cause memory references to get out of order if we allowed the processor to continue to work on later instructions.
-
For DLX, we stall in entire pipeline on cache misses.
-
Soon we will discuss machines that allow Load and Stores to be executed out of order.
-
Types of data hazards
:
-

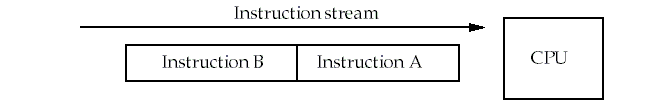

Consider two instructions, A and B. A occurs before B.
-
Hazards are named according to the ordering that MUST be preserved by the pipeline.
-

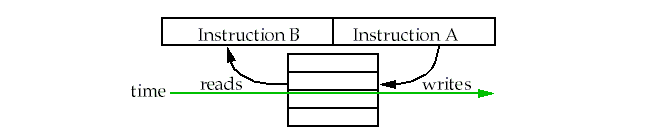

RAW (read after write)
-
B tries to read a register
before
A has written it and gets the old value.
-
This is common, and forwarding helps to solve it.
-
Types of data hazards
:
-
WAW (write after write)
-
B tries to write an operand
before
A has written it.
-
After instruction B has executed, the value of the register should be B's result, but A's result is stored instead.
-
This can only happen with pipelines that write values in more than one stage, or in variable-length pipelines (i.e. FP pipelines).
-
It does not happen in our version of the DLX pipeline, but a modified version might allow it.
-
More on this later.
-
Types of data hazards
:
-

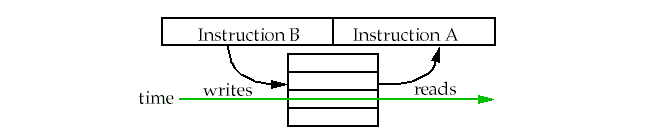

WAR (write after read)
-
B tries to write a register
before
A has read it.
-
In this case, A uses the new (incorrect) value.
-
This type of hazard is rare because most pipelines read values early and write results late.
-
However, it might happen for a CPU that had complex addressing modes. i.e. autoincrement.
-
Types of data hazards
:
-
RAR (read after read)
-
This is
NOT
a hazard since the register value does NOT change.
-
The order of the two reads is not important.
-
Fixing data hazards:
-
Simple solution
-
The first thing that most pipelines do to
avoid
hazards is to write the register file in the first half of the cycle and read it in the second half.
-
Fixes the hazard shown in green.
-
Fixing data hazards:
-
Forwarding
(also called
bypassing
and
short-circuiting
)
-
A key observation is that the necessary register value is often available but is not in the right place, i.e. the register file.
-
This occurs because of the structure of our pipeline.
-
The fix: Allow the CPU to move a value directly from one instruction to another without going through the register file.
-
This is done by
feeding back
the data values from the pipeline registers to the inputs of functional units behind them in the datapath.
-
The values are
forwarded
to future instructions.
-
Note that they are actually moving
backward
in the datapath.
-
Fixing data hazards:
-
Note that forwarding is possible between:
-
The output of one functional unit and the input of the same functional unit (previous example).
-
The output of one functional and the input of another functional unit:
-
In this case, the pipeline register values for R1 and R4 need forwarded to the input of the ALU and data memory inputs.
-
R1 (in EX/MEM) to the input of the ALU for the LW instruction.
-
R1 (in MEM/WB) to the input of the ALU for the SW instruction.
-
R4 (in MEM/WB) (from memory) to the input of DM for the SW instruction (to memory.)
-
Problematic data hazards:
-
Note that forwarding
always
works in the DLX pipeline for Reg-Reg instructions (prevents stalls.)
-
Because all Reg-Reg operations do the real work in the EX stage.
-
This may not always be the case for other instructions,
-
Forwarding helps Loads, but it does NOT solve all the problems.
-
The Load is not completed until after MEM, which is after the EX stage that the following instruction completes.
-
Note that the previous example worked because R4 was going directly to memory and was not needed by the ALU.
-

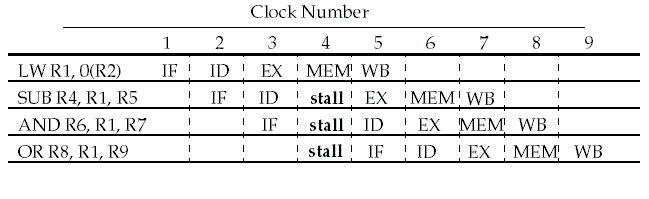

Sometimes no amount of forwarding can help, as with a Load followed by an ALU operation.
-
Stalling is necessary in this case for proper execution.
-
This is done with a
pipeline interlock
, which stalls the pipeline until the hazard is cleared.
-
This inserts a bubble into the pipeline just as the structural hazard did.
-
Just as with structural hazards, no instructions are started during the cycle in which the bubble is inserted.
-
This increases the number of cycles required and thus the CPI.
-
Example:
-
Assume 30% of the instructions are loads.
-
Half the time, instruction following a load instruction depends on the result of the load.
-
If hazard causes a single cycle delay, how much faster is the ideal pipeline ?
-
-
Solution:
-
Ratio of the CPIs.
-
-
CPI for instructions following the load is 1.5, since they stall half of the time.
-
Since loads are 30%, the effective CPI is:
