Data Hazards

Compiler Scheduling

Pipeline scheduling or instruction scheduling: Compiler generates code to eliminate hazard.

Consider:

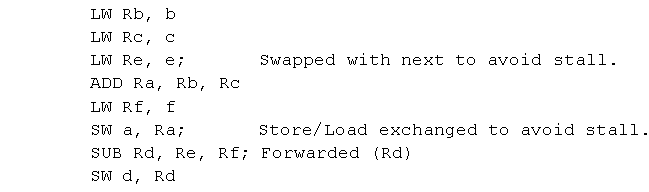

Assume loads have a latency of one clock cycle:

Both load interlocks eliminated.

Data Hazards

Compiler Scheduling: Observations

Note that pipeline scheduling increases the number of registers used.

Compiler algorithms that perform this optimization can do so easily for code in basic blocks .

Basic blocks are code sequences with no branches.

If one instruction executes, they all do.

Method is simple and effective for DLX with a latency for loads of 1 cycle.

As latencies become longer, more aggressive strategies are needed.

More on this later.

Data Hazards

Instruction Issue :

The process of letting an instruction move from ID to EX.

For DLX integer pipe:

All data hazards can be checked during ID phase of pipe and instruction stalled if necessary (i.e. load interlock.)

Forwarding always works for R-R instructions, but only sometimes for loads.

Situation	Example code	Action
Dependence requiring stall	LW R1 , 45(R2) ADD R5, R1 , R7	Comparators detect the use of R1 and stall the ADD before EX.
Dependence overcome by forwarding	LW R1 , 45(R2) ADD R5, R6, R7 SUB R8, R1 , R7	Comparators detect use of R1 in SUB and forward result of load to ALU.

Situation

Example code

Action

Dependence requiring stall

LW R1 , 45(R2)

ADD R5, R1 , R7

Comparators detect the use of R1 and stall the ADD before EX.

Dependence overcome by forwarding

LW R1 , 45(R2)

ADD R5, R6, R7

SUB R8, R1 , R7

Comparators detect use of R1 in SUB and forward result of load to ALU.

Control Hazards

These have a greater performance impact on DLX than data hazards.

However, they are similar in that:

Data	Control
Occur when 2 instructions overlap such that their accesses to a particular register are reordered .	Occur when 2 instructions accesses to the PC are reordered and the first instruction modifies the PC (RAW).

Since every instruction uses the PC in its first cycle (IF), this hazard always occurs when an instruction writes the PC, (i.e. after a branch).

For DLX, the PC is not normally updated until the end of MEM (after address calculation and comparison.)

Control Hazards

Solutions:

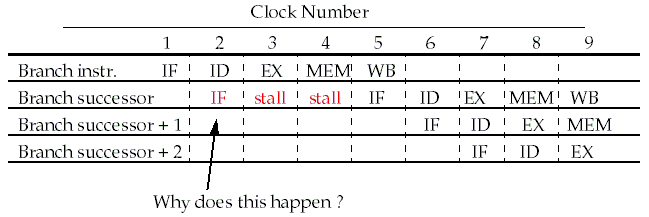

Simple : Stall the pipeline.

This results in a 3 cycle stall for every branch.

Note that if the branch is NOT taken, then the instruction in IF is the correct one.
We will take advantage of this later.

Analysis: With a 30% branch frequency and an ideal CPI of 1, this simple solution achieves only about half of the ideal (1.9 CPI) !

Control Hazards

Solutions:

Reducing the branch penalty can be achieved by:
Deciding whether or not the branch is taken earlier in the pipeline.
Computing the target address earlier in the pipeline.

Note that these two methods have limited usefulness individually.

i.e. It doesn't help to know the target without knowing the outcome of the branch.

For the DLX:

BEQZ and BNEZ require testing a register.

We can do this by moving the zero test unit into ID.

Both PCs must be computed in order to take advantage of this (need an extra adder.)

Branch delay can be reduced to 1 cycle.

Control Hazards

Branch Behavior : Observations using SPEC subset on DLX:

These are dynamic frequencies - not static frequencies:

What matters is executions, not the number of times the instructions occur in the programs.

Conditional branches are much more common:

Conditional outnumber unconditional about 3-4 to 1.
14% to 16% is normal for integer benchmarks (FP benchmarks are much more varied at 3%-12%.)

Forward branches more common:

Forward branches outnumber backwards 3 to 1.

Frequency of taken branches:

67% of conditional branches are taken on average.

60% of the forward and 85% of the backward branches.

Control Hazards

Reducing branch penalties ( static prediction schemes):

Assume we moved the address calculation and decision of whether to take the branch back into ID.

Therefore, if the comparison is to zero , we know the address and the decision at the end of ID.

If comparing one register to another, we wait until after EX to decide if the branch is taken.

Control Hazards

Reducing branch penalties ( static prediction schemes):
Simple : Freeze/flush the pipeline:

This method always flushes the pipeline of instructions up until the branch destination and condition are known.
Branch penalty is fixed and cannot be reduced by software (the compiler.)

Treat every branch as not taken ( predict-not-taken ):

Continue to fetch instructions.

Flush the pipeline if the branch is taken.

Note that successor instructions can NOT change the state of the machine (or, if they do, we must be able to restore the state if branch is taken).

This results in a 1 cycle stall for DLX since the decision (for zero compares) is known after ID.

Control Hazards

Reducing branch penalties ( static prediction schemes):

Treat every branch as taken ( predict-taken )

Wait until the target address is computed and then fetch instructions using the new PC value.

Flush the pipeline if the branch is NOT taken.

For DLX, this doesn't do much good since BOTH the branch target address and the decision (for zero compares) is known after ID.

If the decision is delayed until EX (i.e. Reg-reg compares for DLX), this method may help.

Control Hazards

Reducing branch penalties ( static prediction schemes):

Delayed branch

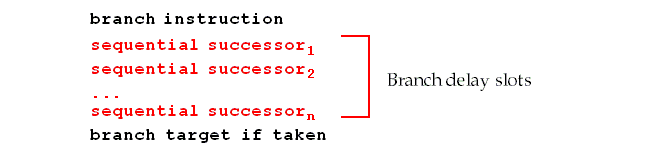

An execution cycle with a branch delay of length n is:

Note that the instruction(s) in the branch delay slot(s) after the branch are always executed.

The compiler should try to put a "useful" instruction here.

If none are available, then a "no-op" is inserted in the delay slot.

This improves performance by letting the CPU do useful work while waiting for the branch target and condition to be determined.

Control Hazards

Delayed branch : DLX has a one branch-delay slot.

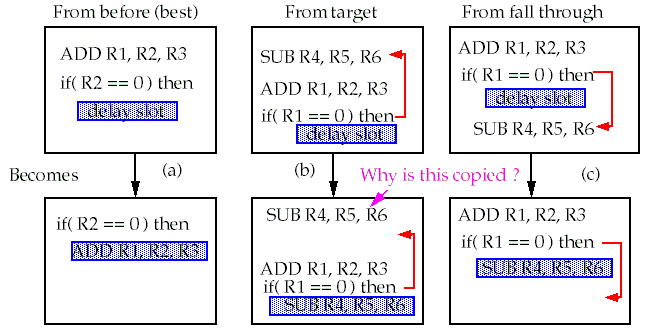

Possible compiler scheduling optimizations:

For schemes b and c,

It must be O.K. to execute the SUB instruction if the prediction is wrong.
Or the hardware must provide a way of cancelling the instruction.

Control Hazards

Delayed branch :

Limitations to the usefulness of this approach:

There are restrictions on the instructions that are scheduled into the delay slots ( i.e. data dependencies.)
The compiler's ability to predict accurately whether or not a branch is taken determines how much useful work is actually done.

Many machines have introduced a cancelling or nullifying branch instruction.

Includes the direction that the branch is predicted to go.
If branch is predicted incorrectly , CPU turns the instruction in the branch delay slot into a no-op.

For machines with a branch delay of 1 (i.e. DLX), the compiler can go along way towards improving performance.

However, for longer branch delays, it gets more difficult to fill the delay slots with useful work.
