Dynamic scheduling

• So far, we have seen that data hazards that prevent instruction issue were hidden by:
• Forwarding.
• Compiler scheduling that separated dependent instructions.



• The latter is referred to as static scheduling .



• Dynamic scheduling is also possible:
• The CPU rearranges the instructions (while preserving dependences) to reduce stalls.



• Dynamic scheduling has several advantages over static:
• Handles dependencies that are UN known at compile time (i.e., a memory reference.)
• Allows code compiled with one pipeline in mind to run efficiently on a different pipeline.

Dynamic scheduling

• Basic problem with pipelining techniques used so far is that they all use in-order instruction issue.



• A stall of an instruction stalls all instructions behind it.



• It is possible that the instructions that follow can issue. For example:

• Basic out-of-order execution :
• There is no reason why the CPU can't execute the SUBD before the ADDD.
• Doing so will reduce the penalty caused by the data stall.



• However, this will force out-of-order completion , which causes problems handling exceptions.

Dynamic scheduling

• In order to do out-of-order execution , we split the ID stage into two halves.
• Issue
• Decode instructions and check for structural hazards.



• Read operands
• Wait until there are no data hazards, and then read the operands.
• Note that we can still use forwarding to remove data hazards.



• A design of this type may use an instruction queue to hold instructions that have been fetched but are waiting to be executed.



• An instruction is considered to be in execution at any time that it's in an EX stage.



• Multiple instructions can be in execution at any given time.

Scoreboarding

• This technique issues instructions in order ( in-order issue.)



• However, instructions can bypass other waiting instructions in the "read operands" phase.



• It is named after the CDC 6600, which was the first machine to use a scoreboard.



• Remember WAR hazards ?
• They did not exist on our DLX FP and integer pipelines.



• Consider:

Scoreboarding

• Goals:
• The goal of this technique (and other dynamic scheduling methods) is to maintain an execution rate of one instruction per cycle.



• This can be done by executing each instruction as soon as possible.



• To accomplish this, the CPU must possess either multiple functional units or pipelined functional units (or both).



• These are equivalent for the purposes of pipeline control.



• Let's assume multiple functional units.

Scoreboarding

• DLX implementation:
• Functional units:

• We'll focus the analysis of scoreboarding on operations involving the FP units.
• The integer units encounter hazards very rarely. (The integer DLX pipeline only stalls when waiting for a value after a load).

Scoreboarding

• DLX implementation:
• Every instruction goes through the scoreboard.
• The scoreboard determines when an instruction can read its operands and write its results.
• Therefore, all hazard detection and resolution are centralized.



• Pipeline stages of interest: ID stage replaced with two stages:
• Issue (IS)
• An instruction is issued if:
• The functional unit is available and
• No other active instruction has the same destination register.



• This avoids WAW hazards and structural hazards.



• For a stall, this causes the buffer between IF and IS to fill.
• A one-entry buffer fills quickly!

Scoreboarding

• Pipeline stages of interest:
• Read Operands (RD)
• The read operation is delayed until the operands are available.
•
• This means that no previously issued but uncompleted instruction has the operand as its destination.
•
• This resolves RAW hazards dynamically .



• Execution (EX)
• Notify the scoreboard when completed so the functional unit can be reused.
•
• This step may take multiple cycles.

Scoreboarding

• Pipeline stages of interest:
• Write result (WB)
• The scoreboard checks for WAR hazards and stalls the completing instruction if necessary.



• In our earlier example, SUBD would be stalled in WB until ADDD reads its operands.



• In general, writeback is stalled if:
• A preceding instructions has not read its operands and
• One of the operands is the same register as the destination of the completing instruction.
• The DLX pipeline is now six cycles long: IF IS RD EX MEM WB.



• Note that forwarding is not used here.
• But it is not a large penalty since write-back occurs as soon as the result is available.
• Instructions that do NOT need the MEM phase don't execute it.

Scoreboarding

• Components of the system:
• Instruction status
• This component keeps track of the current stage of each instruction.



• There is one entry for each instruction that has passed the IF stage but has not yet completed.



• Functional unit status
• This component holds the status of each functional unit.
• "Busy" indicates whether or not the unit is busy.
• "Op" indicates the operation being performed (some functional units can do more than one operation)
• F _i , F _j and F _k indicate the instruction's source and destination registers.
• Q _j and Q _k indicate the functional units producing the instruction's source registers
• R _j and R _k indicate whether or not the values are ready.
• It's these fields that are used to avoid WAR hazards.

Scoreboarding

• Components:
• Register result status
• This holds the ID of the functional unit that will eventually write a register.



• If the register is not the destination of an issued instruction, the field will indicate no functional unit.

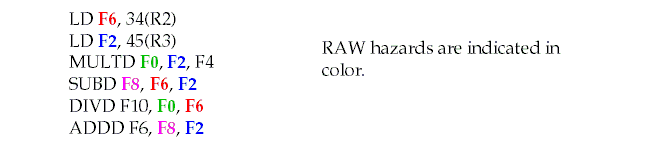

• Consider the code:



• Let's look at snapshots of the three components of the scoreboard during execution.

Scoreboarding

• Execution snapshot #1:

Scoreboarding

• Execution snapshot #2:

Scoreboarding

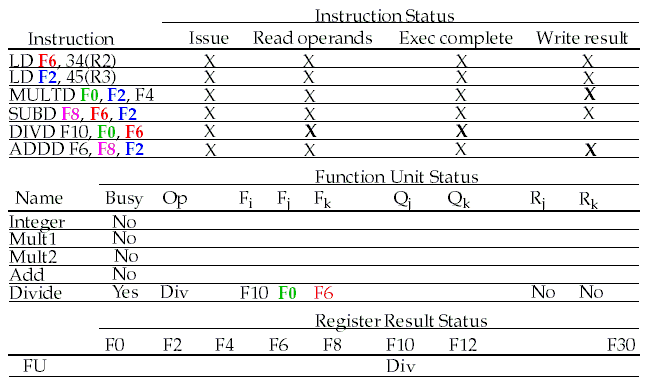

• Execution snapshot #3:

Scoreboarding

• Handling hazards, and distinguishing between RAW and WAR hazards:
• RAW
• We can detect RAW hazards by checking to see if a source register is listed in the Register Result Status table.
• If it is, we have a RAW hazard.



• If the pending instruction is receiving a value from the current instruction, then one of the pending instruction's R _j /R _k fields is set to No .



• WAR
• Before writing the value, we check to make sure that no pending instruction is using a previous value for the register we're about to overwrite.



• If some pending instruction has already received the value it needs, then R _j or R _k is set to Yes and the current instruction must stall ( WAR ).



• This is how we distinguish between a RAW and WAR .

Scoreboarding

• Limitations:
• ILP
• If we can't find independent instructions to execute, scoreboarding (or any dynamic scheduling scheme for that matter) helps very little.



• Size of the "issued" queue
• This determines how far ahead the CPU can look for instructions to execute in parallel.
• It's called the window.



• For now, we assume that a window can not span a branch.
• In other words, the window includes instructions only within basic blocks.



• We'll show how the window can be extended beyond the branch later.

Scoreboarding

• Limitations:
• Number, types, and speed of the functional units
• This determines how often a structural hazard results in stall.



• The presence of antidependences and output dependences
• WAR and WAW hazards limit the scoreboard more than RAW hazards.



• RAW hazards are problems for any technique.
• But WAR and WAW hazards can be solved in ways other than scoreboards.
