Instructor:
-
Professor Jim Plusquellic
Text:
-
Digital Integrated Circuits: A Design Perspective,
-
by Jan M. Rabaey, Prentice Hall (1996).
Supplementary texts:
-
Principles of CMOS VLSI Design: A Systems Perspective,
-
by Neil H.E. Weste and Kamran Eshraghian.
-
Digital Integrated Circuit Design, by Ken Martin, Oxford University Press (2000).
Further Info:
-
http://www.cs.umbc.edu/~plusquel/
-
To introduce the concepts and techniques of modern integrated circuit design and testing (CMOS VLSI).
-
To provide experience designing integrated circuits using Commercial Computer Aided Design (CAD) Tools (CADENCE).
-

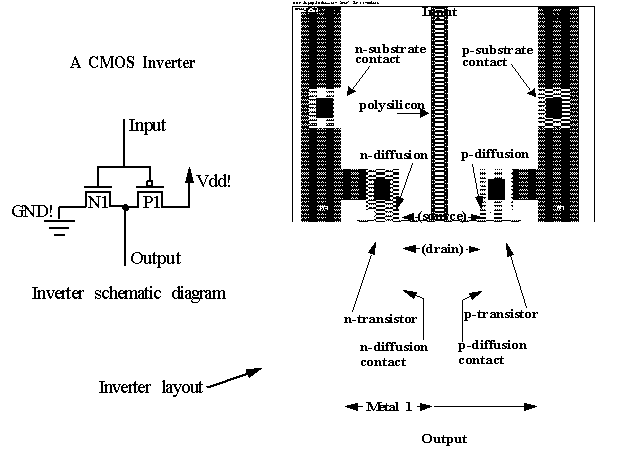

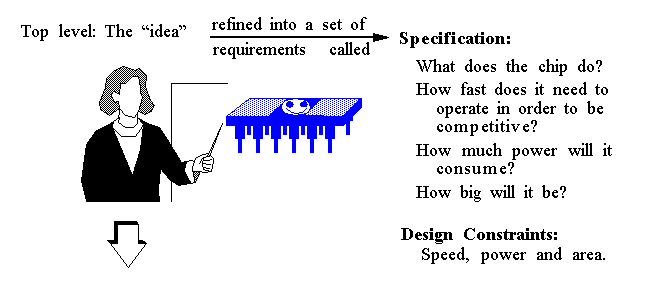

The Design Process
: An iterative process that refines an "idea" to a manufacturable device through at least five levels of design abstraction.
-
Abstraction
: A very effective means of dealing with design complexity.
-
Creating a model at a higher level of abstraction involves replacing detail at the lower level with simplifications.
-
Simulation
: The functional behavior of the design (or a parameter such as power) is determined by applying a set of excitation vectors to a circuit model.
-
TTL (Transistor-Transistor logic).
-
First successful IC logic family.
-
Composed largest fraction of digital IC market until 80's.
-
Power consumption
per gate set upper limit on integration density.
-
I
2
L (Integrated Injection Logic):
-
An attempt to provide a high integration density, low power bipolar family of logic.
-
MOS (Metal-Oxide-Silicon): Actually, we use polysilicon for gates now.
-
Gate stability problems solved in 60's.
-
CMOS was first !
-
Complexity of manufacturing process delayed use until 80's.
-
PMOS-only used through early 70's.
-
In 1974, the 8080 microprocessor was implemented using faster NMOS-only.
-
Late 70's, NMOS-only started suffering from same problem as high density bipolar technology --
power consumption
.
-
Since early 80's, CMOS remains the technology of choice.
-
However,
power consumption
is now becoming a problem.
-
And there is no new technology around the corner to alleviate the problem.
-
When performance is the main issue, other technologies are used:
-
BiCMOS: High speed memory and gate arrays.
-
ECL (Emitter-coupled logic): Even higher performance.
-
Galium-Arsenide
-
Silicon-Germanium
-
Superconducting Technologies
-
Moore's Law: Integration density doubles every 18 months.
-
We'll see more on this later.
-
For example, Microprocessors:
-
The million transistor/chip barrier crossed in `88 with the 486.
-
Impact of this revolution on design:
-
Hand crafting not possible anymore (as was done for the 4004).
-
Hierarchy
is used in the design of the Pentium.
-
The processor is a collection of modules each composed of cells.
-
Re-use of cells reduces design effort and increases the chance of a first-time right implementation.
-
The use of hierarchy is a key ingredient to the success of the digital circuit.
-
Reason why large analog designs never caught on.
-
Abstraction
is also possible in digital designs.
-
And difficult to apply effectively to analog designs.
-
Critical element in dealing with complexity.
-
A multiplier, for example, can be designed and treated like a black box.
-
The performance of the multiplier is only marginally influenced by the way it is used in a larger system.
-
This divide and conquer (
hierarchical
) approach allows the designer to deal with a much smaller number of well characterized modules (or
abstractions
).
-
Abstraction levels:
-
Physical level
: Rectangles, design rules.
-
Circuit level
: Transistors, R and C, analog voltage/current values.
-
Switch level: Transistors, R and C, multi-valued logic.
-
Logic level
: Boolean logic gates, binary valued logic.
-
Register Transfer Level
: Adders, datapaths, binary valued words.
-
Functional level
: Processors, programs and data structures.
-
Entire CAD design frameworks are based on this design philosophy.
-
These have made it possible to achieve current design complexity.
-
Design tools include:
-
Simulation at various complexity levels.
-
Design verification.
-
Layout generation.
-
Design synthesis.
-
Standard cells are a popular design style that makes layout generation easy.
-
Layouts of basic gates such as AND, OR, NAND, NOR, and NOT as well as arithmetic and memory modules are provided as input.
-
These cells are designed with similar characteristics, such as constant height, and can be manipulated easily to generate a layout.
-
If design automation solves all the problems, why be concerned with digital circuit design?
-
Reality is more complex and a knowledge of digital circuit design will be important for some time to come.
-
Someone has to design and implement the module libraries.
-
Porting from technology generation to technology generation (different feature sizes) is NOT automatic.
-
This occurs approximately every two years !
-
Creating an adequate
model
of a cell/module requires an in-depth understanding of its internal operation.
-
A significant part of digital circuit design focuses on analysis of internal circuit operation.
-
The library-based approach does NOT work for all situations, i.e. high performance designs like microprocessors.
-
For Application Specific Integrated Circuits (
ASICs
), library-based approach works well since the design constraints (speed, power, cost and area) are reduced.
-
For microprocessor design, which push technology to its limits, this approach becomes less attractive.
-
The abstraction-based approach is only correct to a certain degree.
-
Performance of a module, i.e. an adder, is substantially influenced by the way it is connected in its environment (
interconnect parasitics
).
-
Scaling tends to emphasize other deficiencies of the abstraction-based approach.
-
Global entities, such as clock signals and supply lines, are significantly affected by scaling.
-
Clock distribution, circuit synchronization and supply-voltage distribution are becoming more and more critical.
-
New design issues emerge over time.
-
Power dissipation issue periodically re-emerges.
-
Recently, the ratio between device and interconnect parasitics (and consequently the appropriate delay model) is changing.
-
Trouble shooting an erroneous design requires circuit expertise.
